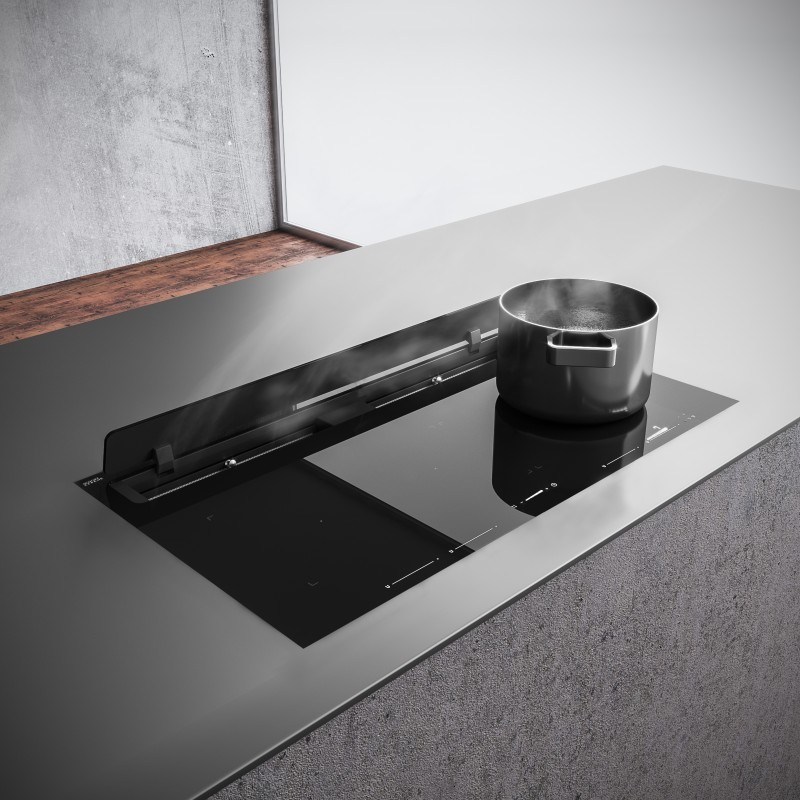

In Shadow air venting induction hob, cooking and extraction live together in an elegant and unique object.
The black ceramic glass, with an exclusive design, opens to two different steps: 45° and 90°. The induction hob guarantees high cooking performances, while the suction unit with a high-performance brushless motor captures all vapours and odours with an efficiency energy class A+.
The height of the product is 215 mm, thus allowing to have more space for drawers in the lower cabinet. Shadow is, in the meantime, a really practical and sophisticated product

Shadow

Motor:
Motor on board Brushless
Control panel:
Touch control 4 speeds+timer integrated on the induction hob
Filter:
Black aluminium filter

See drawing


TECHNOLOGY OF THE HOB
Induction G5
Beveled edges black glass
Automatic heat-up function
Safety Lock
Timer function
Over-heating operation
"Keep Warm" function
Pause and recall function
Bridge function
Touch controls
Booster function on all zones
Cooking output
4 zones 184x220mm 2100W; Power 3700W
Max power 7,4 kW
Electric rating 220-240V (50/60 Hz)

Request information

ENERGY LABEL

PRODUCT DIM. MOTOR IDENTIFIER EEI
S-DDH5 BRHM 900x520 on board D005090TC135XXXX A+ ENERGY LABEL TECH FICHE Drawing
