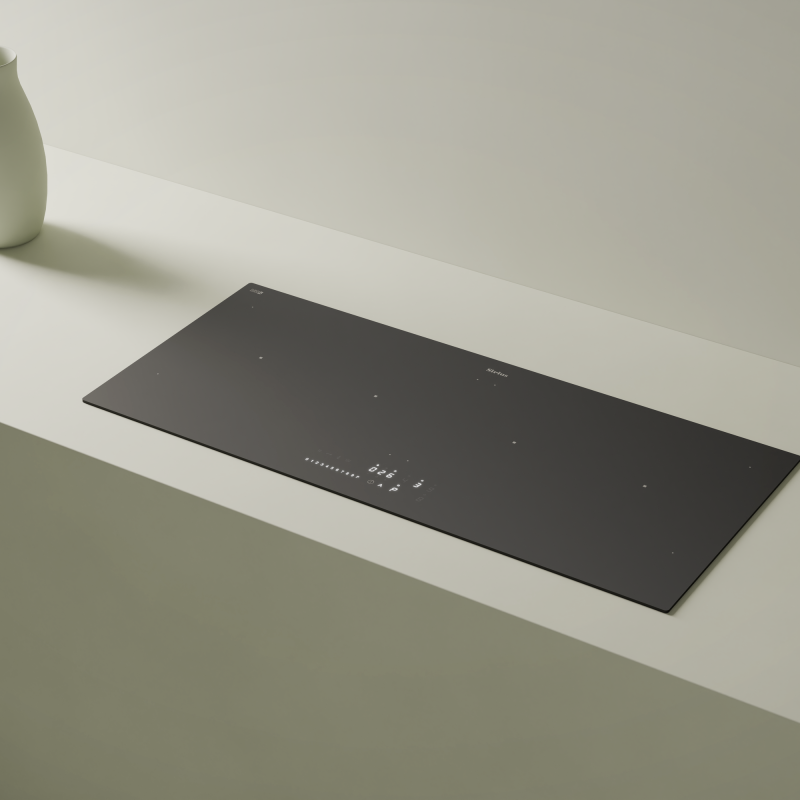

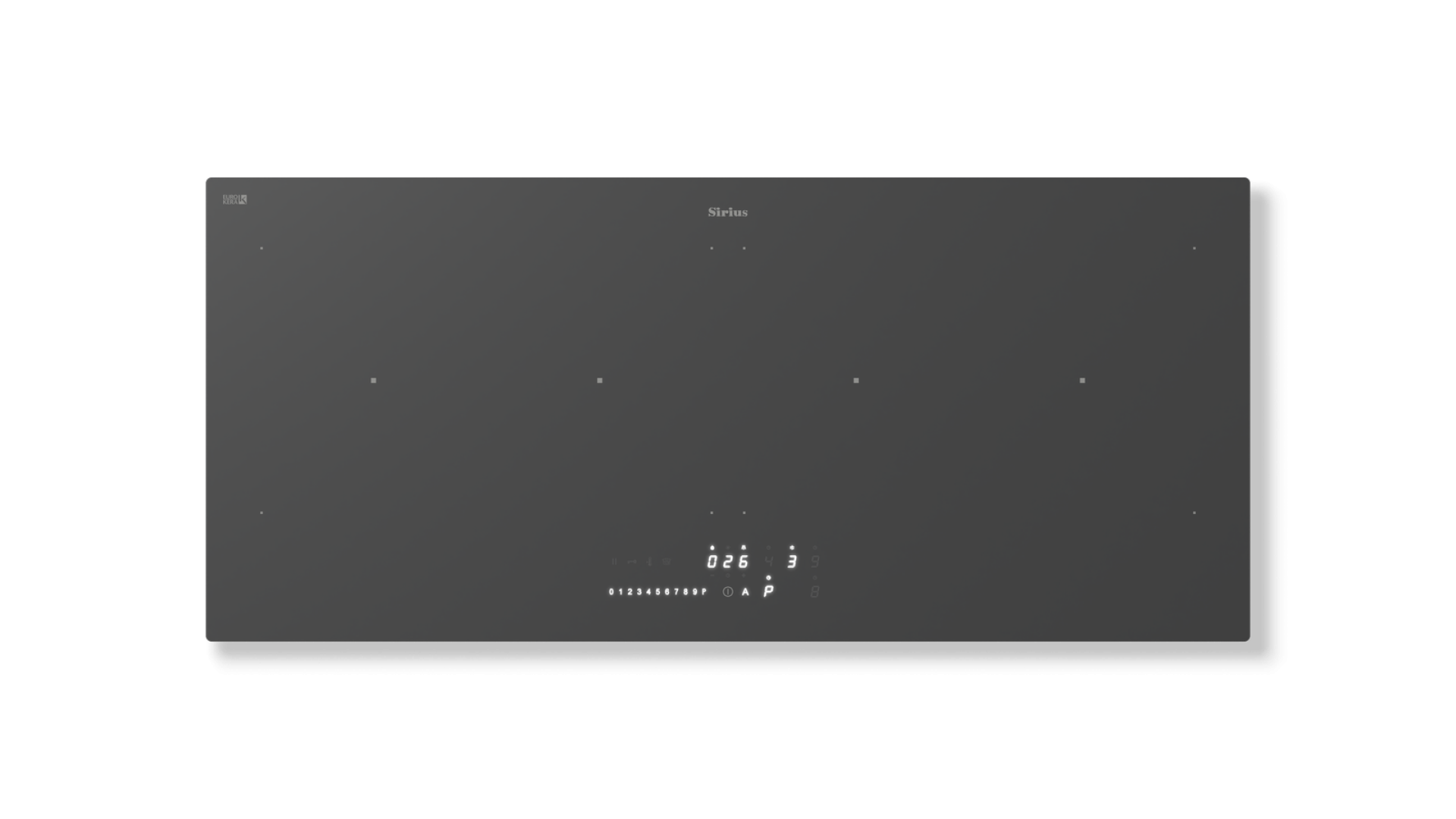

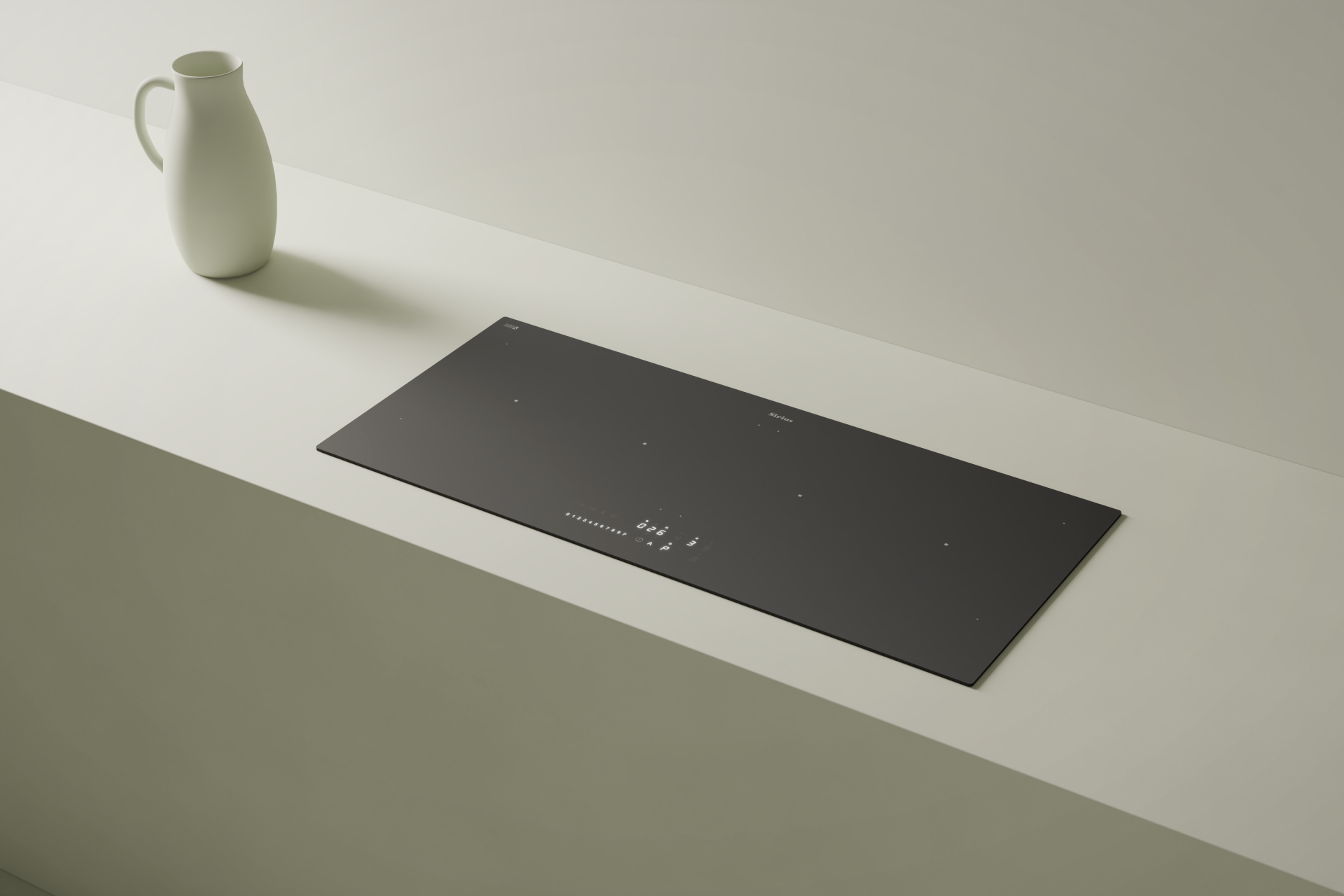

SH9 Phases Line is an induction hob that redefines the aesthetics of modern kitchens. Measuring 90×40 cm with four aligned cooking zones, it is designed for those seeking the perfect balance between style, functionality and visual cleanliness. The matte black surface gives the hob a bold and sophisticated character, while the grey serigraphy adds a discreet and refined graphic detail, enhancing the cooking areas without disrupting the harmony of the design.
The linear arrangement of the zones offers an intuitive and orderly cooking experience, ideal for those who enjoy precision and keeping every pot under control. Induction technology ensures speed, efficiency and safety, keeping the surface cool and making daily cleaning easier.

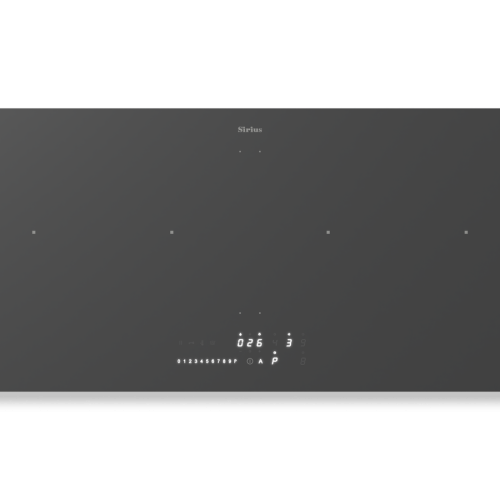

The hob also features a simple, intuitive and comfortable touch control, designed to make every interaction immediate and precise. The white LED indicators provide clear, crisp visibility of all commands, improving readability in any lighting condition and reinforcing the modern, minimal aesthetic of the product. The combination of responsive touch control and bright LED feedback ensures a smooth, accurate and enjoyable user experience.
More than an appliance, it is a true design element: this induction hob blends minimalism, performance and quality into a single solution, created for those who want to bring essential modernity and distinctive style into their kitchen.
Ego B4 induction technology
Schott Ceran Luminoir black glass
Slider control Smart Kii (White led)
Cooking timer
Stand alone timer
Booster
Pause
Recall
automatic Pot detection
Keep warm
Child lock
Key lock
Residual heat display
Automatic heat up
Bridge
Cooking zone: 4
Hob Size (mm)
900X400
CUT OUT
860X370 mm
Max power 7,4kW
Left front cookingzone OCTA 21x19 cm -2,1 / 3,0 Kw
Left rearcookingzone OCTA 21x19 cm -2,1 / 3,0 Kw
Right rearcookingzone OCTA 21x19 cm -2,1 / 3,0 Kw
Right front cookingzone OCTA 21x19 cm -2,1 / 3,0 Kw
Number of bridge cookingzones 2 horizontals
Power limitation 2,8kW -3,5kW -4,5kW
NominalVoltage 220-240V / 380-415V 2N
Frequency 50-60 Hz
| PRODUCT | DIM. | MOTOR | |
|---|---|---|---|
| S-H9 PHASES LINE | 90X40 | on board | Drawing |
