Inside Out is a ceiling hood equipped with advanced technologies and characterised by minimal lines and extreme attention to details.
This is the perfect synthesis between aesthetics, efficiency and functionality.

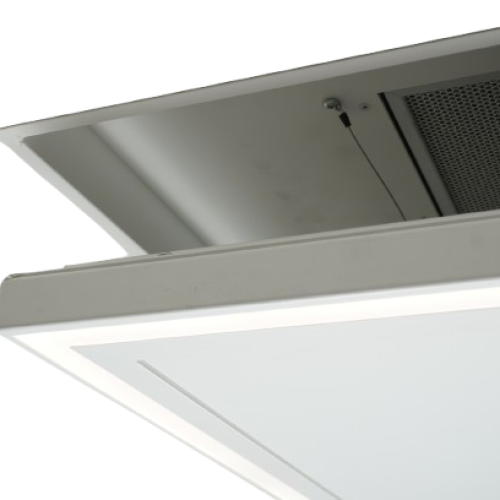

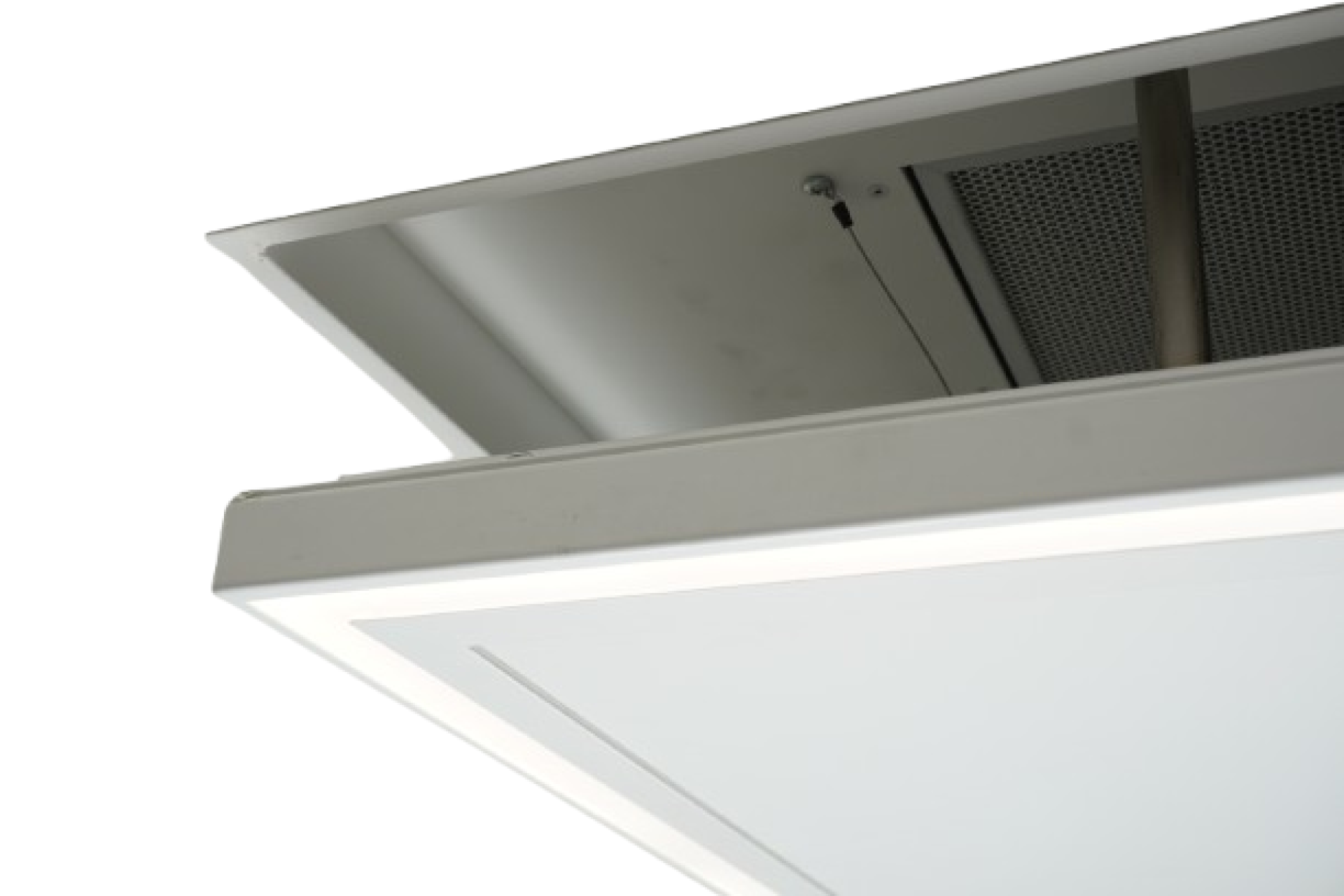

This range hood activates by remote control and descends from the ceiling, allowing the extraction of cooking vapours.
After use, the hood goes back to hide in the ceiling
Motor:
Flat motor on board Brushlessor
Flat motor on board 4V
External motor version (to be purchased separately)
Lighting:
Dimmable and dynamic Led 11W (2700 to 6500K)
Control panel:
Remote control
Filter:
Anodized aluminum (5+1 layers)
Finishing:
White matt painted
Installation:
For the installation create a false
ceiling with a niche of 890mm x
510mm whose minimum
height to be reached is 220 mm
PRODUCT | DIM. | MOTOR | IDENTIFIER | EEI | |||
---|---|---|---|---|---|---|---|
SLT980 EM | 920x540 | SEM1 1000m3/h | C980090RC1245181 | A | ENERGY LABEL | TECH FICHE | Drawing |
SLT980 EM | 920x540 | SEM2 1000m3/h | C980090RC1155181 | C | ENERGY LABEL | TECH FICHE | Drawing |
SLT980 BRHM | 920x540 | on board | C980090RC1375181 | A+ | ENERGY LABEL | TECH FICHE | Drawing |
