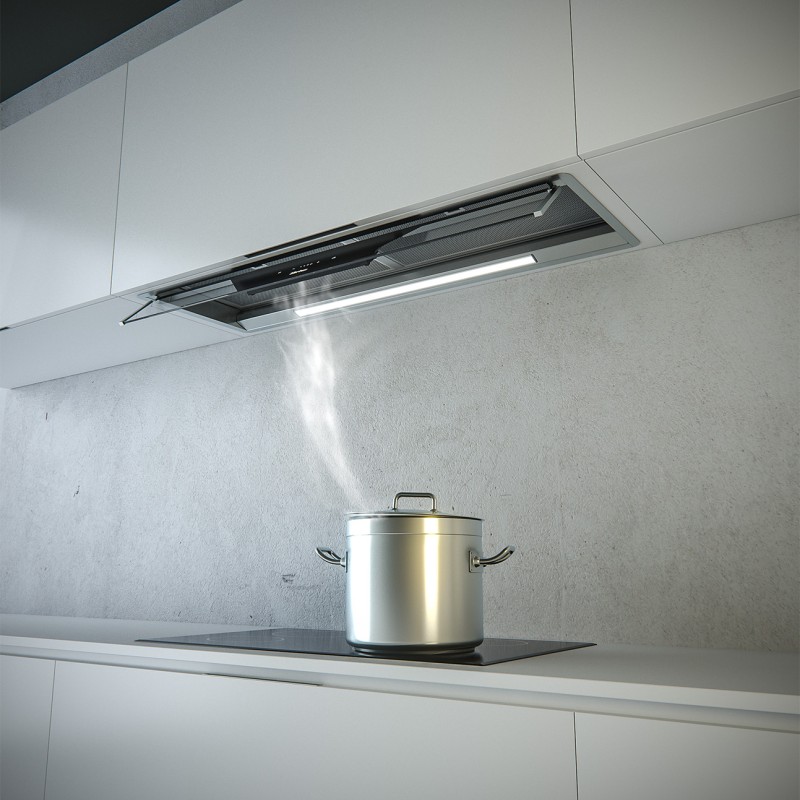

Wing SLTC919 is the new built-in model from Sirius. Equipped with LED light, it is activated by the touch screen interface on the glass panel. This panel, which rotates thanks to the hinges, opens allowing both to display the controls and to channel the vapors to the suction grille and then closes and hides again inside the furniture when the kitchen hood is not in function
Motor on board:
Top or back vented
Lighting:
1X6W Dimmable and dyamic Led bar (2700 to 6500°) (SLTC919 85cm version)
1x3,75W Dimmable and dynamic Led bar (2700 to 6500°K) (SLTC919 52cm version)
Control Panel:
Touch control 4 speeds+light switch+timer
Grease filter:
Anodized aluminum (5+1 layers)
Material:
Stainless steel AISI430 and glass
Installation:
Cut Out:
Create a niche in the cabinet for
498x265mm (52cm version)
828x265mm (85cm version)
PRODUCT | DIM. | MOTOR | IDENTIFIER | EEI | |||
---|---|---|---|---|---|---|---|
SLTC 919 | 520 | on board | G919T52TC1283566 | A | ENERGY LABEL | TECH FICHE | Drawing |
SLTC 919 | 850 | on board | G919T85TC1283367 | A | ENERGY LABEL | TECH FICHE | Drawing |
