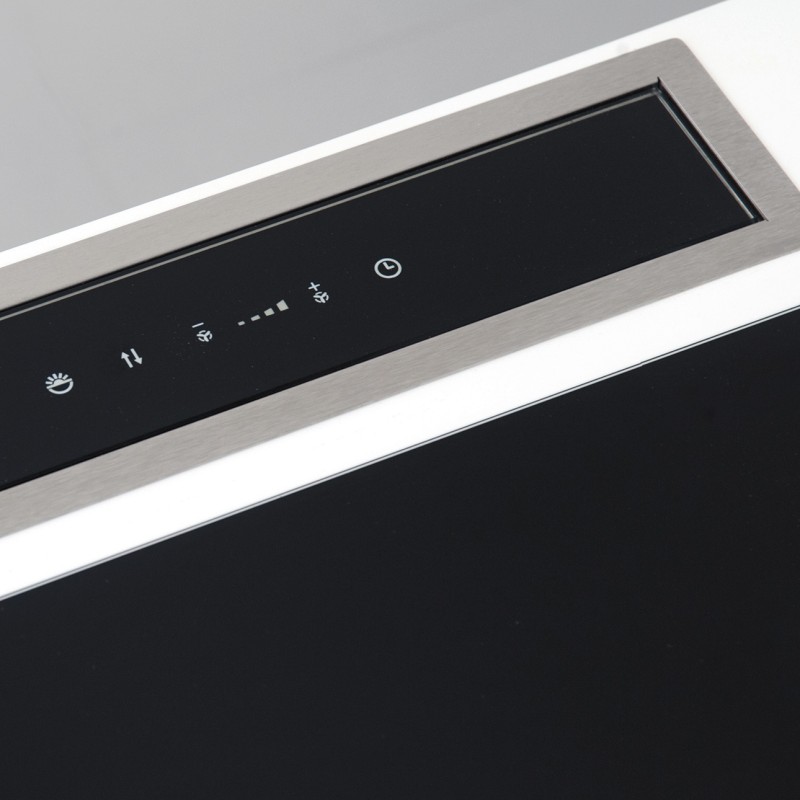

S-DD2 L TC

Motor:
available with motor on board or external motor (to be purchased separately)
Lighting:
1x8W neon (S-DD2-L 575mm version)
1x14W neon (S-DD2-L 875mm version)
1x21W neon (S-DD2-L 1175mm version)
1x5W LED (S-DD2-L 875mm version)
Control panel:
Touch control 4 speeds+light switch+timer
Grease filter:
Anodized aluminum (4+1 layers)
Material:
Stainless steel AISI304 and glass

Cut out:
Create a niche in the countertop using the following dimensions
100x542 mm (S-DD2-L 575mm)
100x842 mm (S-DD2-L 875mm)
100x1142 mm (S-DD2-L 1175mm)

Anti-crushing safety system

ENERGY LABEL

PRODUCT DIM. MOTOR IDENTIFIER EEI
S-DD2-L TC 575 on board D002058TC1281116 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 575 SEM1 D002058TC1291116 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 575 SEM2 D002058TC1151116 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 575 SEM8 D002058TC1171116 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 575 SEM10 D002058TC1301116 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC 875 on board D002088TC1281415 A ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 875 SEM1 D002088TC1291415 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 875 SEM2 D002088TC1151415 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM + SEM7 Ø150 BRH 875 SEM7 D002088TC1161415 A ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM + SEM7 Ø200 BRH 875 SEM7 D002088TC1161415 A ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 875 SEM8 D002088TC1171415 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 875 SEM10 D002088TC1301405 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 875 SEM12 D002088TC1311405 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED 875 on board D002088TC1282415 A ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM 875 SEM1 D002088TC1292415 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM 875 SEM2 D002088TC1152415 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM + SEM7 Ø150 BRH 875 SEM7 D002088TC1162415 A+ ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM + SEM7 Ø200 BRH 875 SEM7 D002088TC1162415 A+ ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM 875 SEM8 D002088TC1172415 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM 875 SEM10 D002088TC1302415 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC LED EM 875 SEM12 D002088TC1312415 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC 1175 on board D002118TC1281317 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 1175 SEM1 D002118TC1291317 B ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 1175 SEM2 D002118TC1151317 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 1175 SEM8 D002118TC1171317 C ENERGY LABEL TECH FICHE Drawing
S-DD2-L TC EM 1175 SEM10 D002118TC1301317 C ENERGY LABEL TECH FICHE Drawing
